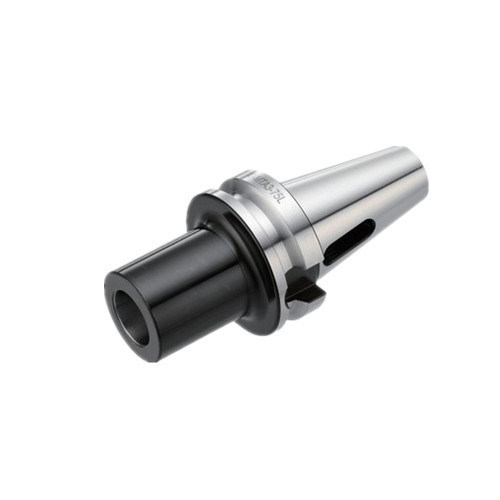

BT40-MTA2-60 CNC Tool Holder Morse Taper Shank G2.5 Milling Tool Holder

Basic Information
Place of Origin: CHINA
Brand Name: QFMH
Model Number: BT30,BT40,BT50
Minimum Order Quantity: 10PCS
Price: USD 8/PCS
Packaging Details: PLASTIC BOX
Delivery Time: 5DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PCS/MONTH
AppliCATEion: CNC Machining Cutting Direction: Right Hand
Cutting Edge Angle: 90° Flute Length: 50mm
Material: 20CrMnTi Number Of Flutes: 2
Overall Length: 100mm Package: Plastic Box
Product Name: Morse Taper Adapter Shank Diameter: 20mm
Shank Type: Morse Taper Shank And Tang Size: Standard
Model: MTA2
High Light:

BT40-MTA2-60 CNC Tool Holder Morse

,

G2.5 Milling Tool Holder

,

MTA2-60 Morse Taper Shank

BT40-MTA2-60 Morse Taper Adapter CNC Tool Holder morse taper shank G2.5 milling tool holder



Morse Taper Adapter with BT CNC Tool Holder ,BT tool holders use metric thread pull stud. We have G6.3 rpm 12000-16000 and G2.5 rpm 18000-25000.BT-MTA Morse taper milling tool holder, suitable for clamping type DIN228-1A with flat tail Morse tool holder.Morse taper adapter suitable for clamping type DIN228-1A with flat tail Morse tool holder. high speed and high precision machining.



BT MTA Morse Taper Adapter Holder
1.Material :20CrMnTi
2.Hardness:HRC52-54
3.Runout:0.005mm
4.Cooling:AD;AD/B can be made by request.
5.Balancing:G6.3/15000 RPM
6.Usage:for holding tools with Morse taper shank and tang according to DIN228-1 form B

7.modle No.: BT30,BT40,BT50

8. Material: high quality carburized synthetic steel, black and fine grinding

9.ontact Surface: ≥85%

10. Standard:MAS 403

11. Taper Shank: Tolerance Level <AT3

12.Maximum beating: <0.005mm​

13.Surface roughness: Ra <0.005 mm

14. Shank of the Morse Taper Collet chuck MTA1/MTA2/MTA3/MTA4/MTA5

MTB1/MTB2/MTB3/MTB4/MTB5



Model MT.NO. L d Weight(kg)
BT30-MTA1-45 1 45 25 0.43
BT30-MTA2-60 2 60 32 0.5
BT40-MTA1-45 1 45 25 1.02
BT40-MTA2-60 2 60 32 1.11
BT40-MTA3-75 3 75 40 1.15
BT40-MTA4-90 4 90 48 1.43
BT50-MTA1-45 1 45 25 3.6
BT50-MTA2-50 2 50 32 3.63
BT50-MTA2-60 2 60 32 3.64
BT50-MTA2-120 2 120 32 4.3
BT50-MTA3-65 3 65 40 4.2
BT50-MTA3-120 3 120 40 4.4
BT50-MTA3-135 3 135 40 4.46
BT50-MTA3-150 3 150 40 4.68
BT50-MTA4-85 4 85 48 3.75
BT50-MTA4-95 4 95 48 3.85
BT50-MTA4-105 4 105 63 5
BT50-MTA4-108 4 108 63 5.06
suitable for clamping type DIN228-1A with flat tail Morse tool holder




BT MORSE TAPER ADAPTER Tool Holder ,BT Morse Taper Adapter ,BT tool holders use metric thread pull stud. We have G6.3 rpm 12000-16000 and G2.5 rpm 18000-25000.Tool pack , please lock the handle with sword and lock screw .BT Morse Taper Adapter ,Removing tool , first relax tensed screw 2-3laps , and then on his sword first part of the handle witha hammer to knock zhi, relax after contact, and loosening Screw m remove the tool, Can do dynamic balance test G6.3 G2.5.

BT40-MTA2-60 CNC Tool Holder Morse Taper Shank G2.5 Milling Tool Holder 0

Precision milling machine Collet Chuck Morse taper Adapter , suitable for clamping type DIN228-1A with flat tail Morse tool holder.high speed and high precision machining .Mechanical spindle and cutting tools and other accessories.High Precision BT shank Tool Holder ,balanced G6.3 or G2.5 For choose.BT-MTA milling lathe chuck morse taper adapter with tang, for holding tools with Morse taper shank and tang according to DIN228-1 form B.Mechanical spindle and cutting tools and other accessories.



CNC BT Morse Taper Adapter
