| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | BT30,BT40,BT50 |
| Minimum Order Quantity: | 10 |
| Price: | 10 |
| Packaging Details: | CARTON |
| Delivery Time: | 10DAYS |
| Payment Terms: | TT |
| Supply Ability: | 10000 |
| Features: | High Precision | Size: | Standard |
|---|---|---|---|
| Diameter: | 30mm | Shank: | MAS403 |
| Overall Length: | 100mm | Color: | Silver |
| Type: | BT Tool Holder | AppliCATEion: | CNC Machine |
| Brand: | OEM | Coating: | Titanium |
| Hardness: | HRC55 | Height: | 20mm |
| Length: | 100mm | Surface Treatment: | Polishing |
| Tolerance: | 0.01mm | Material: | 20CrMnTi |
| Model: | BT30/BT40/BT50 | ||
| High Light: | 100mm length er collet chuck,precise machining er collet chuck,precise machining bt40 tool holder |
||

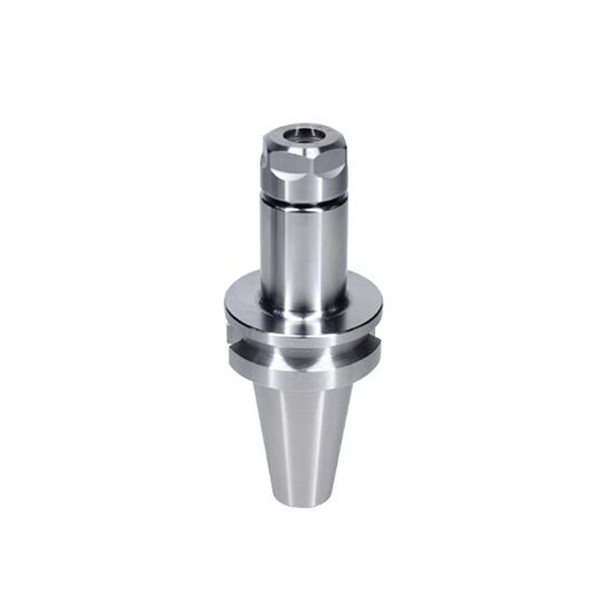

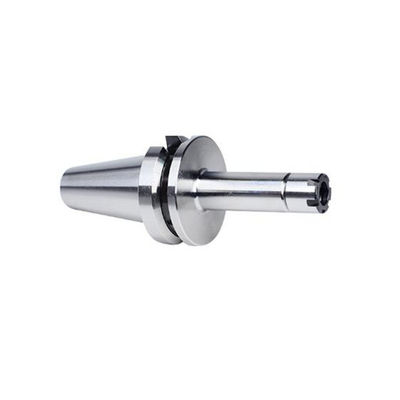

CNC Tool Holder, also known as BT Tool Holder, is one of the most important accessories for CNC machine tools. It is designed for clamping and holding cutting tools for CNC machine tools, and it is widely used in machining centers and drilling machines. This BT Tool Holder has a shank of MAS403 and a weight of 1kg. Its flute length is 50mm, and its overall diameter is 30mm. This cutting tool holder is manufactured with superior material to provide excellent performance and long service life. It is an ideal choice for CNC machining and drilling.
| MODEL | L1 | L | D | D1 | T |
| BT30-ER16-70 | 70 | 118.4 | 28 | 31.75 | M10*1.5 |
| BT30-ER16-100 | 100 | 148.4 | 28 | 31.75 | M10*1.5 |
| BT30-ER16-120 | 120 | 168.4 | 28 | 31.75 | M10*1.5 |
| BT30-ER20-70 | 70 | 118.4 | 34 | 31.75 | M12*1.75 |
| BT30-ER20-100 | 100 | 148.4 | 34 | 31.75 | M12*1.75 |
| BT30-ER20-135 | 135 | 183.4 | 34 | 31.75 | M12*1.75 |
| BT30-ER25-70 | 70 | 118.4 | 42 | 31.75 | M16*2 |
| BT30-ER25-135 | 135 | 183.4 | 42 | 31.75 | M16*2 |
| BT30-ER32-70 | 70 | 118.4 | 50 | 31.75 | M16*2 |
| BT30-ER32-100 | 100 | 148.4 | 50 | 31.75 | M16*2 |
| BT30-ER40-80 | 80 | 128.4 | 63 | 31.75 | M16*2 |
| BT40-ER16-70 | 70 | 135.4 | 28 | 44.45 | M10*1.5 |
| BT40-ER16-100 | 100 | 165.4 | 28 | 44.45 | M10*1.5 |
| BT40-ER16-125 | 125 | 190.4 | 28 | 44.45 | M10*1.5 |
| BT40-ER16-160 | 160 | 215.4 | 34 | 44.45 | M10*1.5 |
| BT40-ER20-70 | 70 | 135.4 | 34 | 44.45 | M12*1.75 |
| BT40-ER20-100 | 100 | 170.4 | 34 | 44.45 | M12*1.75 |
| BT40-ER20-135 | 135 | 200.4 | 34 | 44.45 | M12*1.75 |
| BT40-ER20-160 | 160 | 215.4 | 34 | 44.45 | M12*1.75 |
| BT40-ER25-70 | 70 | 135.4 | 42 | 44.45 | M16*2 |
| BT40-ER25-100 | 100 | 165.4 | 42 | 44.45 | M16*2 |
| BT40-ER25-125 | 125 | 190.4 | 42 | 44.45 | M16*2 |
| BT40-ER25-160 | 160 | 215.4 | 42 | 44.45 | M16*2 |
| BT40-ER32-70 | 70 | 135.4 | 50 | 44.45 | M16*2 |
| BT40-ER32-100 | 100 | 165.4 | 50 | 44.45 | M16*2 |
| BT40-ER32-150 | 150 | 215.4 | 50 | 44.45 | M16*2 |
| BT40-ER40-80 | 80 | 145.4 | 63 | 44.45 | M20*2 |
| BT40-ER40-100 | 100 | 165.4 | 63 | 44.45 | M20*3 |
| BT40-ER40-120 | 120 | 185.4 | 63 | 44.45 | M20*4 |
| BT40-ER40-150 | 150 | 215.4 | 63 | 44.45 | M20*5 |
| BT40-ER50-85 | 85 | 145.4 | 78 | 44.45 | M24*2 |
| BT40-ER50-100 | 100 | 165.4 | 78 | 44.45 | M24*2 |
| BT50-ER16-70 | 70 | 171.8 | 28 | 69.85 | M10*1.5 |
| BT50-ER16-90 | 90 | 191.8 | 28 | 69.85 | M10*1.5 |
| BT50-ER16-105 | 105 | 206.8 | 28 | 69.85 | M10*1.5 |
| BT50-ER16-135 | 135 | 236.8 | 28 | 69.85 | M10*1.5 |
| BT50-ER16-165 | 165 | 266.8 | 28 | 69.85 | M10*1.5 |
| BT50-ER20-70 | 70 | 171.8 | 34 | 69.85 | M12*1.75 |
| BT50-ER20-90 | 90 | 191.8 | 34 | 69.85 | M12*1.75 |
| BT50-ER20-105 | 105 | 206.8 | 34 | 69.85 | M12*1.75 |
| BT50-ER20-135 | 135 | 236.8 | 34 | 69.85 | M12*1.75 |
| BT50-ER20-150 | 150 | 251.8 | 34 | 69.85 | M12*1.75 |
| BT50-ER20-165 | 165 | 266.8 | 34 | 69.85 | M12*1.75 |
| BT50-ER20-200 | 200 | 301 | 34 | 69.85 | M12*1.75 |
| BT50-ER25-70 | 70 | 171.8 | 42 | 69.85 | M16*2 |
| BT50-ER25-105 | 105 | 206.8 | 42 | 69.85 | M16*2 |
| BT50-ER25-135 | 135 | 236.8 | 42 | 69.85 | M16*2 |
| BT50-ER25-165 | 165 | 266.8 | 42 | 69.85 | M16*2 |
| BT50-ER32-80 | 80 | 181.8 | 50 | 69.85 | M16*2 |
| BT50-ER32-100 | 100 | 201.8 | 50 | 69.85 | M16*2 |
| BT50-ER32-120 | 120 | 221.8 | 50 | 69.85 | M16*2 |
| BT50-ER32-160 | 160 | 251 | 50 | 69.85 | M16*2 |
| BT50-ER32-200 | 200 | 301 | 50 | 69.85 | M16*2 |
| BT50-ER40-80 | 80 | 181.8 | 63 | 69.85 | M20*2 |
| BT50-ER40-100 | 100 | 201.8 | 63 | 69.85 | M20*2 |
| BT50-ER40-120 | 120 | 221.8 | 63 | 69.85 | M20*2 |
| BT50-ER40-135 | 135 | 236.8 | 63 | 69.85 | M20*2 |
| BT50-ER50-90 | 90 | 191.8 | 78 | 69.85 | M24*2 |
| BT50-ER50-120 | 120 | 221.8 | 78 | 69.85 | M24*2 |
| BT50-ER50-165 | 165 | 266.8 | 78 | 69.85 | M24*2 |
QFMH offers a wide range of BT Tool Holders for CNC Machine Tools Accessories, such as BT30, BT40, BT50, etc. These ER Tool Holders are certified by ISO and are available in different sizes, such as BT40, with a Flute Diameter of 10mm, Overall Length of 100mm, Weight of 1kg and Shank of MAS403. The Minimum Order Quantity is 10 and the Price is 10. The Packaging Details are in CARTON and the Delivery Time is 10DAYS. We accept Payment Terms of TT and Supply Ability of 10000.
BT Tool Holder is a type of CNC tool holder, cutting tool holder, and cutting tool holders, manufactured by QFMH. It is available in three different models, BT30, BT40, and BT50. It has been certified by ISO. The minimum order quantity is 10 pieces, with a price of 10. It is delivered in a carton, with a delivery time of 10 days. Payment terms are TT. The supply ability is 10000 pieces. The length is 100mm, flute length is 50mm, weight is 1kg, overall diameter is 30mm, and overall length is 100mm.
BT Tool Holder provides technical support and service to ensure the best performance of its products. Our technical support team is available 24 hours a day, 7 days a week to assist you with any questions or issues you may have.
We offer a range of services including:
If you have any questions or need assistance with your BT Tool Holder product, please contact us at support@bttoolholder.com.
BT Tool Holder products are packaged securely in heavy duty cardboard boxes with foam padding. All packages are shipped via a reliable courier service and will require a signature upon delivery.
1.What kind of characteristic of your company?
We are both manuafcturer and exporter.
2.Can you supply samples?
Yes,we can.
3.Can you produce products according to our requirement?
Yes,we can.
4. About Shipping
| Port: | Shanghai/Ningbo/Guangzhou/Shenzhen/Hongkong | |
| Shipping : | By Air, By Sea or By Express | |
| Shipping Time : | 4-10days By Express | Different Area will spend different shipping days |
| 7-15days By Air | ||
| 25-55days By Sea | ||
| Trade Terms | FOB, CIF, EXW, CFR, DDU... | |
5. product warranty
One year warranty
6.What's your payment terms?
FOB,T/T,CIF.
