Features: | High Precision, Durable | Accuracy: | AT3 |
---|---|---|---|
Product Type: | ER COLLET CHUCK | Coolant Hole: | Yes |
Thread Size: | Various Lengths | Weight: | 1.1 |
Size: | BT40 | Diameter: | 3-26mm |
Warranty: | 1 Year | Hardness: | HRC 56-58 |
Taper: | 1:10 | Runout: | 0.005mm |
Cooling: | AD/B | Package: | Plastic Box |
Shank Type: | BT ER COLLET CHUCK | ||
High Light: | Coolant Hole BT Tool Holder,AT3 Accuracy BT Tool Holder |
This Tool Holder with BT Shank is perfect for those who are looking for a reliable and efficient tool for their machining operations. Its diameter ranges from 3mm to 26mm, making it suitable for a wide range of cutting tools. Additionally, it comes in various thread sizes and lengths to CATEEer to different machine requirements.
One of the key features of this BT Tool Holder is its high-precision design. This means that it can hold the cutting tool securely and accurately, preventing any slippage or misalignment that can result in poor quality output. As a result, this tool can help improve the overall efficiency of the machining process, as well as the quality of the finished product.
Another benefit of using this ER COLLET CHUCK product is its durability. Its polishing surface treatment ensures that it can withstand the wear and tear that comes with continuous use. This means that it can last longer and require less frequent maintenance and replacement, making it a cost-effective solution for any machining operation.
To sum it up, the BT Tool Holder is an ER COLLET CHUCK product that comes with a BT Shank Tool Holder. It provides high-precision and durability, thanks to its surface treatment of polishing. With its wide range of diameter, thread size, and length, it is a versatile tool that can CATEEer to different machine requirements. Overall, it is a reliable and efficient tool that can help improve the efficiency and quality of the machining process.
Our BT Tool Holder product line includes:
MODEL | L1 | L | D | D1 | T |
BT30-ER16-70 | 70 | 118.4 | 28 | 31.75 | M10*1.5 |
BT30-ER16-100 | 100 | 148.4 | 28 | 31.75 | M10*1.5 |
BT30-ER16-120 | 120 | 168.4 | 28 | 31.75 | M10*1.5 |
BT30-ER20-70 | 70 | 118.4 | 34 | 31.75 | M12*1.75 |
BT30-ER20-100 | 100 | 148.4 | 34 | 31.75 | M12*1.75 |
BT30-ER20-135 | 135 | 183.4 | 34 | 31.75 | M12*1.75 |
BT30-ER25-70 | 70 | 118.4 | 42 | 31.75 | M16*2 |
BT30-ER25-135 | 135 | 183.4 | 42 | 31.75 | M16*2 |
BT30-ER32-70 | 70 | 118.4 | 50 | 31.75 | M16*2 |
BT30-ER32-100 | 100 | 148.4 | 50 | 31.75 | M16*2 |
BT30-ER40-80 | 80 | 128.4 | 63 | 31.75 | M16*2 |
BT40-ER16-70 | 70 | 135.4 | 28 | 44.45 | M10*1.5 |
BT40-ER16-100 | 100 | 165.4 | 28 | 44.45 | M10*1.5 |
BT40-ER16-125 | 125 | 190.4 | 28 | 44.45 | M10*1.5 |
BT40-ER16-160 | 160 | 215.4 | 34 | 44.45 | M10*1.5 |
BT40-ER20-70 | 70 | 135.4 | 34 | 44.45 | M12*1.75 |
BT40-ER20-100 | 100 | 170.4 | 34 | 44.45 | M12*1.75 |
BT40-ER20-135 | 135 | 200.4 | 34 | 44.45 | M12*1.75 |
BT40-ER20-160 | 160 | 215.4 | 34 | 44.45 | M12*1.75 |
BT40-ER25-70 | 70 | 135.4 | 42 | 44.45 | M16*2 |
BT40-ER25-100 | 100 | 165.4 | 42 | 44.45 | M16*2 |
BT40-ER25-125 | 125 | 190.4 | 42 | 44.45 | M16*2 |
BT40-ER25-160 | 160 | 215.4 | 42 | 44.45 | M16*2 |
BT40-ER32-70 | 70 | 135.4 | 50 | 44.45 | M16*2 |
BT40-ER32-100 | 100 | 165.4 | 50 | 44.45 | M16*2 |
BT40-ER32-150 | 150 | 215.4 | 50 | 44.45 | M16*2 |
BT40-ER40-80 | 80 | 145.4 | 63 | 44.45 | M20*2 |
BT40-ER40-100 | 100 | 165.4 | 63 | 44.45 | M20*3 |
BT40-ER40-120 | 120 | 185.4 | 63 | 44.45 | M20*4 |
BT40-ER40-150 | 150 | 215.4 | 63 | 44.45 | M20*5 |
BT40-ER50-85 | 85 | 145.4 | 78 | 44.45 | M24*2 |
BT40-ER50-100 | 100 | 165.4 | 78 | 44.45 | M24*2 |
BT50-ER16-70 | 70 | 171.8 | 28 | 69.85 | M10*1.5 |
BT50-ER16-90 | 90 | 191.8 | 28 | 69.85 | M10*1.5 |
BT50-ER16-105 | 105 | 206.8 | 28 | 69.85 | M10*1.5 |
BT50-ER16-135 | 135 | 236.8 | 28 | 69.85 | M10*1.5 |
BT50-ER16-165 | 165 | 266.8 | 28 | 69.85 | M10*1.5 |
BT50-ER20-70 | 70 | 171.8 | 34 | 69.85 | M12*1.75 |
BT50-ER20-90 | 90 | 191.8 | 34 | 69.85 | M12*1.75 |
BT50-ER20-105 | 105 | 206.8 | 34 | 69.85 | M12*1.75 |
BT50-ER20-135 | 135 | 236.8 | 34 | 69.85 | M12*1.75 |
BT50-ER20-150 | 150 | 251.8 | 34 | 69.85 | M12*1.75 |
BT50-ER20-165 | 165 | 266.8 | 34 | 69.85 | M12*1.75 |
BT50-ER20-200 | 200 | 301 | 34 | 69.85 | M12*1.75 |
BT50-ER25-70 | 70 | 171.8 | 42 | 69.85 | M16*2 |
BT50-ER25-105 | 105 | 206.8 | 42 | 69.85 | M16*2 |
BT50-ER25-135 | 135 | 236.8 | 42 | 69.85 | M16*2 |
BT50-ER25-165 | 165 | 266.8 | 42 | 69.85 | M16*2 |
BT50-ER32-80 | 80 | 181.8 | 50 | 69.85 | M16*2 |
BT50-ER32-100 | 100 | 201.8 | 50 | 69.85 | M16*2 |
BT50-ER32-120 | 120 | 221.8 | 50 | 69.85 | M16*2 |
BT50-ER32-160 | 160 | 251 | 50 | 69.85 | M16*2 |
BT50-ER32-200 | 200 | 301 | 50 | 69.85 | M16*2 |
BT50-ER40-80 | 80 | 181.8 | 63 | 69.85 | M20*2 |
BT50-ER40-100 | 100 | 201.8 | 63 | 69.85 | M20*2 |
BT50-ER40-120 | 120 | 221.8 | 63 | 69.85 | M20*2 |
BT50-ER40-135 | 135 | 236.8 | 63 | 69.85 | M20*2 |
BT50-ER50-90 | 90 | 191.8 | 78 | 69.85 | M24*2 |
BT50-ER50-120 | 120 | 221.8 | 78 | 69.85 | M24*2 |
BT50-ER50-165 | 165 | 266.8 | 78 | 69.85 | M24*2 |
Our tool holders are packaged in sturdy cartons to ensure safety during transportation. We offer a delivery time of 10 days and accept payment through TT. With a supply ability of 10,000 pieces, we are equipped to meet the demands of our customers in a timely manner.
The BT tool holder is a versatile product that can be used in a variety of appliCATEEions. Its diameter ranges from 3-26mm, and it weighs just 1kg. The tool holder is equipped with a coolant hole, making it ideal for use in appliCATEEions that require coolant. Our BT40 model is one of our most popular sizes, and has an accuracy rating of AT3.

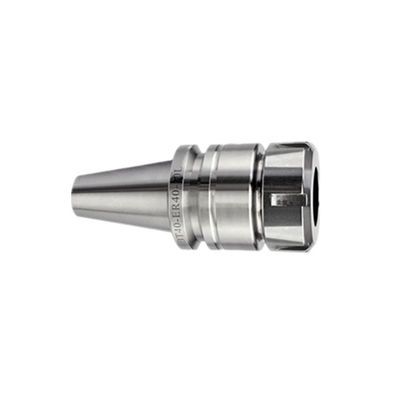

Our BT ER collet chuck is designed for use on lathes, and is ideal for holding cutting tools securely in place. The BT40 ER40 70L model is a popular choice among our customers, and is known for its durability and precision. Whether you are working on a small project or a large-scale production run, our BT tool holder is the perfect solution for your needs.
In summary, our BT tool holder is a reliable and versatile product that is suitable for a wide range of appliCATEEions. With its affordable price, fast delivery time, and high-quality construction, it is the perfect choice for professionals and hobbyists alike.
Our BT Tool Holder product comes with comprehensive technical support and services to ensure that our customers experience optimal performance and productivity. Our team of experts is available to assist with any technical questions or issues that may arise during setup or use of the tool holder. Additionally, we offer maintenance and repair services as needed to keep the tool holder in top condition. Our commitment to customer satisfaction means that we are always striving to improve our products and services, and we welcome feedback from our users to help us achieve that goal
Model parameters:
BT30-ER11-60 / 100
BT30-ER16-70 / 100/120
BT30-ER20-70 / 100/15
BT30-ER25-70 / 135
BT30-ER32-70 / 100
BT30-ER40-80
BT40-ER11-70 / 100
BT40-ER16-70 / 100/125/150
BT40-ER20-70 / 80/100/135/150
BT40-ER25-70 / 80/100/125/150
BT40-ER32-70 / 100/150
BT40-ER40-80 / 100/120/150
BT40-ER50-80-100
BT50-ER16-70 / 90/105/135/150/165/200
BT50-ER20-70 / 90/105/135/150/165/200/250
BT50-ER25-70 / 105/135/150/165/200/250
BT50-ER32-80 / 100/120/150/200/250
BT50-ER40-80 / 100/120/135/150/200
BT50-ER50-90 / 100/120/150/165
