Diameter: | 3-26mm | Size: | BT40 |
---|---|---|---|
Accuracy: | AT3 | Thread Size: | Various Lengths |
Coolant Through: | Yes | Coolant Hole: | Yes |
Weight: | 1 | Length: | 70 |
High Light: | Collet Chuck Tool Holder,Precision Collet Chuck Tool Holder,BT Collet Chuck Tool Holder |

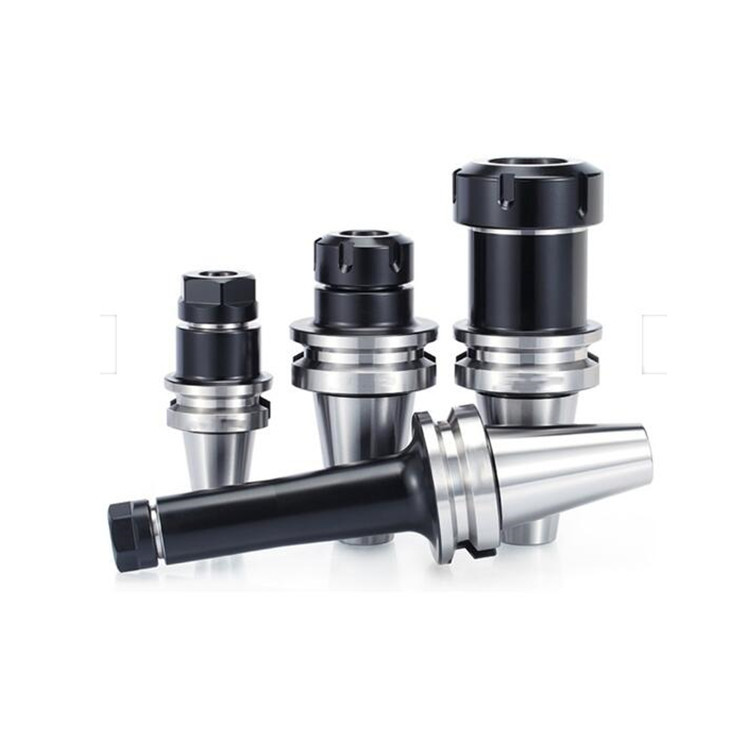

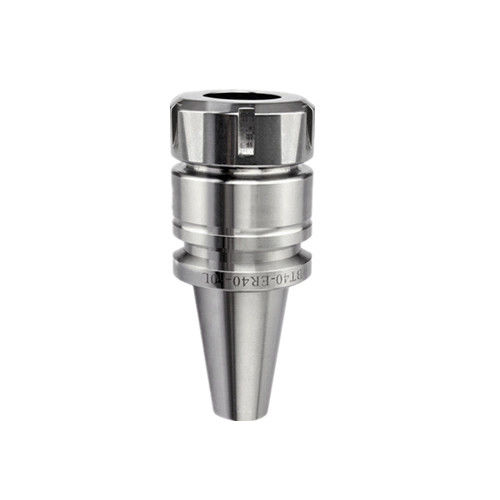

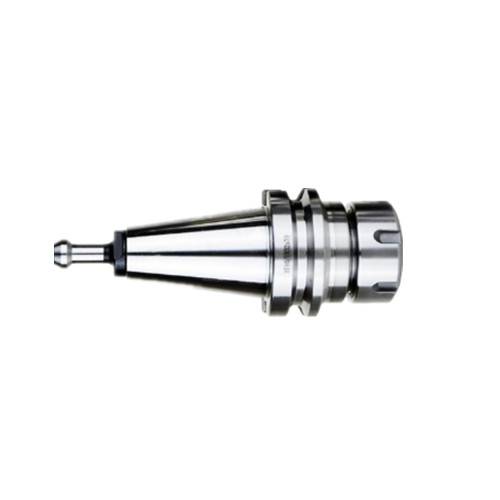

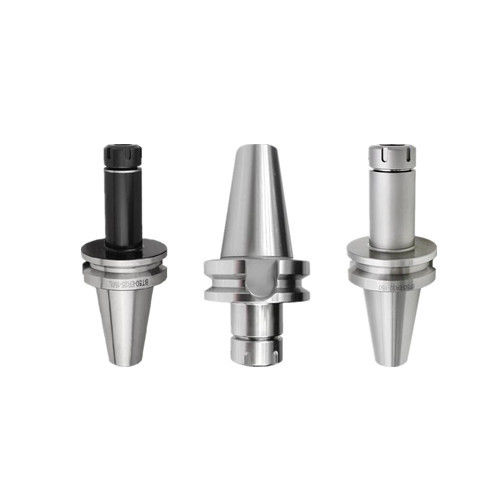

One of the most popular types of tool holders on the market is the BT ER Tool Holder, also known as a BT ER Milling Chuck. This type of tool holder is designed to hold ER collets, which are precision collets used to securely grip the cutting tool.
The BT Tool Holder is designed to fit on a BT mount, which is a standardized spindle mount used in many CNC machines. The BT40 size is a common size used in many milling machines.
The BT Tool Holder has a diameter range of 3-26mm, making it suitable for a wide range of cutting tools. The tool holder is made of high-quality materials and is polished to a smooth surface finish, ensuring that it is durable and long-lasting.
One of the key benefits of the BT Tool Holder is its ease of use. The tool holder is designed to be simple and straightforward to install and remove, making it easy to change cutting tools as needed. This makes it ideal for use in high-volume production environments where efficiency is key.
The BT Tool Holder is also designed to provide a high degree of accuracy and precision. The tool holder is designed to hold the cutting tool securely and align it with the spindle, ensuring that the cutting tool is in the correct position for precise machining operations.
In summary, the BT Tool Holder is a high-quality CNC Tool Holder with BT Mount that is designed to hold cutting tools securely and accurately. The BT ER Tool Holder is a popular type of tool holder that is designed to hold ER collets, making it suitable for a wide range of cutting tools. The BT Tool Holder is easy to use and provides a high degree of accuracy and precision, making it an essential tool for any CNC machine operator or machinist.
1.Collet Chuck modle No.: BT30,BT40,BT50
2.Bt30 Tool Holder Materail: 20CrMnTi
3.Taper tolerance:<AT3
4.Carbon depth: 0.8mm±0.2mm
5.Surface Roughness: Ra<0.005mm
6. Bt Tool Holder Hardness: HRC 56-58
7. Max run out: <0.005mm
8. Bt Collet Chuck Cooling AD+B type can be made by request
9. When Order, please specify balancing G6.3 or G2.5
10. Shank body standard: MAS 403 and B63396.
11.Packaging Detail: Plastic boxes, cartons
12.Delivery Detail: 15-20 days after receiving the deposit and all package information confirmed.
MODEL | L1 | L | D | D1 | T |
BT30-ER16-70 | 70 | 118.4 | 28 | 31.75 | M10*1.5 |
BT30-ER16-100 | 100 | 148.4 | 28 | 31.75 | M10*1.5 |
BT30-ER16-120 | 120 | 168.4 | 28 | 31.75 | M10*1.5 |
BT30-ER20-70 | 70 | 118.4 | 34 | 31.75 | M12*1.75 |
BT30-ER20-100 | 100 | 148.4 | 34 | 31.75 | M12*1.75 |
BT30-ER20-135 | 135 | 183.4 | 34 | 31.75 | M12*1.75 |
BT30-ER25-70 | 70 | 118.4 | 42 | 31.75 | M16*2 |
BT30-ER25-135 | 135 | 183.4 | 42 | 31.75 | M16*2 |
BT30-ER32-70 | 70 | 118.4 | 50 | 31.75 | M16*2 |
BT30-ER32-100 | 100 | 148.4 | 50 | 31.75 | M16*2 |
BT30-ER40-80 | 80 | 128.4 | 63 | 31.75 | M16*2 |
BT40-ER16-70 | 70 | 135.4 | 28 | 44.45 | M10*1.5 |
BT40-ER16-100 | 100 | 165.4 | 28 | 44.45 | M10*1.5 |
BT40-ER16-125 | 125 | 190.4 | 28 | 44.45 | M10*1.5 |
BT40-ER16-160 | 160 | 215.4 | 34 | 44.45 | M10*1.5 |
BT40-ER20-70 | 70 | 135.4 | 34 | 44.45 | M12*1.75 |
BT40-ER20-100 | 100 | 170.4 | 34 | 44.45 | M12*1.75 |
BT40-ER20-135 | 135 | 200.4 | 34 | 44.45 | M12*1.75 |
BT40-ER20-160 | 160 | 215.4 | 34 | 44.45 | M12*1.75 |
BT40-ER25-70 | 70 | 135.4 | 42 | 44.45 | M16*2 |
BT40-ER25-100 | 100 | 165.4 | 42 | 44.45 | M16*2 |
BT40-ER25-125 | 125 | 190.4 | 42 | 44.45 | M16*2 |
BT40-ER25-160 | 160 | 215.4 | 42 | 44.45 | M16*2 |
BT40-ER32-70 | 70 | 135.4 | 50 | 44.45 | M16*2 |
BT40-ER32-100 | 100 | 165.4 | 50 | 44.45 | M16*2 |
BT40-ER32-150 | 150 | 215.4 | 50 | 44.45 | M16*2 |
BT40-ER40-80 | 80 | 145.4 | 63 | 44.45 | M20*2 |
BT40-ER40-100 | 100 | 165.4 | 63 | 44.45 | M20*3 |
BT40-ER40-120 | 120 | 185.4 | 63 | 44.45 | M20*4 |
BT40-ER40-150 | 150 | 215.4 | 63 | 44.45 | M20*5 |
BT40-ER50-85 | 85 | 145.4 | 78 | 44.45 | M24*2 |
BT40-ER50-100 | 100 | 165.4 | 78 | 44.45 | M24*2 |
BT50-ER16-70 | 70 | 171.8 | 28 | 69.85 | M10*1.5 |
BT50-ER16-90 | 90 | 191.8 | 28 | 69.85 | M10*1.5 |
BT50-ER16-105 | 105 | 206.8 | 28 | 69.85 | M10*1.5 |
BT50-ER16-135 | 135 | 236.8 | 28 | 69.85 | M10*1.5 |
BT50-ER16-165 | 165 | 266.8 | 28 | 69.85 | M10*1.5 |
BT50-ER20-70 | 70 | 171.8 | 34 | 69.85 | M12*1.75 |
BT50-ER20-90 | 90 | 191.8 | 34 | 69.85 | M12*1.75 |
BT50-ER20-105 | 105 | 206.8 | 34 | 69.85 | M12*1.75 |
BT50-ER20-135 | 135 | 236.8 | 34 | 69.85 | M12*1.75 |
BT50-ER20-150 | 150 | 251.8 | 34 | 69.85 | M12*1.75 |
BT50-ER20-165 | 165 | 266.8 | 34 | 69.85 | M12*1.75 |
BT50-ER20-200 | 200 | 301 | 34 | 69.85 | M12*1.75 |
BT50-ER25-70 | 70 | 171.8 | 42 | 69.85 | M16*2 |
BT50-ER25-105 | 105 | 206.8 | 42 | 69.85 | M16*2 |
BT50-ER25-135 | 135 | 236.8 | 42 | 69.85 | M16*2 |
BT50-ER25-165 | 165 | 266.8 | 42 | 69.85 | M16*2 |
BT50-ER32-80 | 80 | 181.8 | 50 | 69.85 | M16*2 |
BT50-ER32-100 | 100 | 201.8 | 50 | 69.85 | M16*2 |
BT50-ER32-120 | 120 | 221.8 | 50 | 69.85 | M16*2 |
BT50-ER32-160 | 160 | 251 | 50 | 69.85 | M16*2 |
BT50-ER32-200 | 200 | 301 | 50 | 69.85 | M16*2 |
BT50-ER40-80 | 80 | 181.8 | 63 | 69.85 | M20*2 |
BT50-ER40-100 | 100 | 201.8 | 63 | 69.85 | M20*2 |
BT50-ER40-120 | 120 | 221.8 | 63 | 69.85 | M20*2 |
BT50-ER40-135 | 135 | 236.8 | 63 | 69.85 | M20*2 |
BT50-ER50-90 | 90 | 191.8 | 78 | 69.85 | M24*2 |
BT50-ER50-120 | 120 | 221.8 | 78 | 69.85 | M24*2 |
BT50-ER50-165 | 165 | 266.8 | 78 | 69.85 | M24*2 |
The BT Tool Holder is designed for use in various machining scenarios and occasions. It is ideal for use in milling, drilling, and tapping operations and can be used with different cutting tools. The tool holder is suitable for use in automotive, aerospace, and general engineering industries.
The BT Tool Holder is designed to support tooling appliCATEEions that require a high degree of accuracy. It has an accuracy rating of AT3 and is suitable for use in precision machining appliCATEEions. The tool holder is also coolant-through and can be used in appliCATEEions that require cooling of the cutting tool and the workpiece.
The BT Tool Holder is sold in cartons with a minimum order quantity of 10. The price of the tool holder is $10, and the delivery time is 10 days. Payment terms are TT, and the supply ability is 10,000 units per month. The tool holder weighs 1kg and has the model number BT40 ER40 70L.
The BT Tool Holder product comes with comprehensive technical support and services to ensure maximum performance and longevity. Our team of experts is available to assist with any technical issues or questions you may have regarding the product, including installation, maintenance, and troubleshooting. We also offer repair and replacement services for any defective or damaged components of the product. In addition, we provide training and eduCATEEional resources to help you optimize the use of your BT Tool Holder and achieve the best results possible.
1.What kind of characteristic of your company?
We are both manuafcturer and exporter.
2.Can you supply samples?
Yes,we can.
3.Can you produce products according to our requirement?
Yes,we can.
4. About Shipping
Port: | Shanghai/Ningbo/Guangzhou/Shenzhen/Hongkong | |
Shipping : | By Air, By Sea or By Express | |
Shipping Time : | 4-10days By Express | Different Area will spend different shipping days |
7-15days By Air | ||
25-55days By Sea | ||
Trade Terms | FOB, CIF, EXW, CFR, DDU... |
5. product warranty
One year warranty
6.What's your payment terms?
FOB,T/T,CIF.
Name: Shandong Jining Qingfeng Machinery Hardware Co. Ltd.
Pho: +86-13705473076
Tel: +86-537-3281595
Fax: +86-537-3281597
Email: james.wang@qfmh.com
Address: NO.47 Jinyu Road, Jining, Shandong
BT TOOL HOLDER (MAS 403 BT) AD_B.pdf
